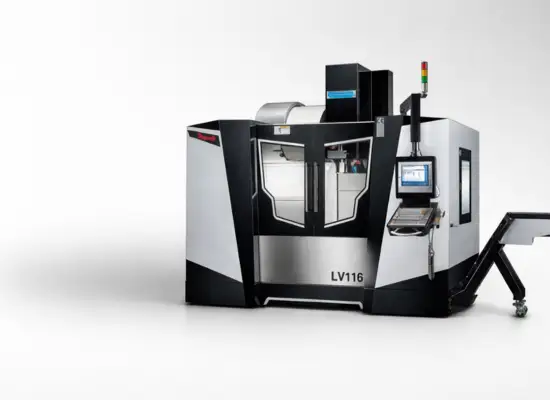

LV 116 Series Vertical Machining Center
LV 116 Series Vertical Machining Center
If you’re searching for a LV 116 Series Vertical Machining Center, chances are your current setup isn’t delivering the speed or consistency your production demands.
That’s where the LV 116 Series Vertical Machining Center comes into play.
At SanMech Autotech Services LLP, we supply robust and efficient LV 116 Series Machines in Pune built for real-world manufacturing — where uptime, accuracy, and repeatability matter every single day.
Key Features of LV 116 Series Vertical Machining Center in Pune
Compact & Rigid Structure
Optimized Spindle Performance
Efficient Chip Disposal
Easy-to-Operate CNC Control
Real Production Benefits
Let’s keep it practical — this is what actually improves on the shop floor with a LV 116 Series CNC Machining Center:
For many manufacturers, this becomes a reliable workhorse machine for daily operations.
Applications of LV 116 Series CNC Machine in Pune Industries
The LV 116 Series VMC Machine is widely used in:
If your requirement is consistent output with controlled cost, this machine fits well.
LV 116 CNC Machining Center –
Built for
Efficiency
The LV 116 Series CNC Machining Center is designed for manufacturers who need reliable performance without overcomplicating operations.
It’s ideal for:
Compared to standard machines, the LV 116 Series offers improved stability, smoother machining, and consistent output quality.
Technical Overview (Typical Specifications)
- Spindle Speed: Optimized for balanced performance
- Table Size: Suitable for medium components
- Axis Travel: Flexible machining range
- CNC Control: User-friendly interface
- Tool Capacity: Multi-tool capability
Why Choose SanMech Autotech ?
It is used for precision machining in automotive, engineering, and industrial manufacturing.
We recommend the right LV 116 CNC Machining Center based on your needs.
Ensures smooth operations with minimal downtime.
Our machines are already used across multiple sectors with consistent results.
Frequently Asked Questions
It is used for precision machining in automotive, engineering, and industrial manufacturing.
Yes, it is an LV 116 Vertical Machining Center designed for industrial applications.
What makes LV 116 CNC Machining Center different?
Yes, we provide complete installation and technical support.
Yes, we provide complete installation and after-sales support services.
| MODEL | LV118 | LV128 |
|---|---|---|
| TABLE | ||
| Table Size (mm) | 1300 × 610 | 1440 × 610 |
| Travel Ranges (X × Y × Z mm) | 1140 × 610 × 610 | 1270 × 610 × 610 |
| Max. Table Load (kgs) | 850 | 850 |
| Spindle Nose to Table Surface (mm) | 110 – 720 | 110 – 720 |
| T-slot (Width × Distance × Number mm) | 18 × 125 × 5 | 18 × 125 × 5 |
| SPINDLE | ||
| Spindle Taper | BT-40 | BT-50 |
| Spindle Inner Diameter (mm) | Ø70 | Ø80 |
| Spindle Center to Column (mm) | 675 | 675 |
| Spindle Speed (rpm) Belt | 40 – 8000 | 40 – 8000 |
| Spindle Speed (rpm) Gear | L40–1750, H1751–8000 | L40–1500, H1501–6000 |
| Spindle Speed (rpm) Direct Drive | 10000 / 12000 / 15000 | 10000 |
| Draw Bar Force (kgf) | 950 | 2000 |
| Main Motor (cont/30 min kW) | 7.5 / 11 | 11 / 15 |
| FEED RATE | ||
| Rapid Feed Rate (X/Y/Z m/min) | 30 / 30 / 24 | 30 / 30 / 24 |
| Feed Rate (X/Y/Z mm/min) | 10000 | 10000 |
| AXIS SERVO MOTOR | ||
| Mitsubishi XYZ (kW) | HF354 | HF354 |
| Fanuc (kW) | β22/2000 (2.5) or α12/3000 (3.0) | — |
| Siemens (kW) | 1FK7 063 (2.9) | 1FK7 063 (2.9) |
| Fagor (kW) | FKM64.30A | FKM64.30A |
| Heidenhain (kW) | QSY1558 (2.47) | QSY1558 (2.47) |
| AUTO TOOL CHANGER | ||
| ATC Type | ISO40 | ISO50 |
| Mag Type | PLATE / DISK | DISK / CHAIN |
| Cam Type | GENOVA / DUAL ARM | DUAL ARM |
| Tool Selection (Bi-direction) | ABSOLUTE / RANDOM | RANDOM |
| Tool Storage Capacity (pcs) | 20 / 24 | 16 / 24 |
| Max. Tool Diameter (mm) | Ø100 / Ø90 | Ø115 / Ø127 |
| Max. Tool Length (mm), Weight (kgs) | 250mm, 8kgs | 300mm, 15kgs |
| MISCELLANEOUS | ||
| Air Requirement (kg/cm²) | 6 | 6 |
| Voltage | 220 | 220 |
| Power Requirement (kVA) | 20 | 20 |
| Coolant Tank Capacity (L) | 300 | 300 |
| Machine Weight (kgs) | 6500 | 6800 |
| Machine Height (mm) | 2950 | 2950 |
| Floor Space (L × W mm) | 3100 × 2230 | 3400 × 2230 |
| Packing Size (L × W × H mm) | 3450 × 2300 × 2530 | 3450 × 2300 × 2530 |
Standard Accessory & Function
|
Optional Accessory & Function
|
| QUALITY THROUGH PRECISION INSPECTIONS Each Pinnacle machine is subject to dynamic and static accuracy tests. Pinnacle machine accuracy meets VDI 3441, ISO 10791, JIS B6336 and ASME B5 standards. | |||
| Laser Inspection | Ball Bar Inspection | Right Angle Test On X And Y Axes | Dynamic Vibration |
| Noise Inspection | Three-dimensional coordinate measurement | ||
| ARM TYPE ATC The 24-tool arm type magazine is activated by electric motor transmitted by U-cam mechanism, featured with the fastest tool change speed and bi-directional random tool selection. (option) |
| COOLANT THROUGH SPINDLE Coolant circulates through spindle offer a direct cooling effect on tools, removing heat that occurs during machining. Combining with filter tank system. (option) |
| 20 BAR HI-PRESSURE PUMP AND TANK 20μm filter and 600L capacity to assure CTS system offers the highest efficacy. (option) |
| GEAR BOX The Gear Box offers high torque and provides heavy cutting capability. (option) |
| CHIP CONVEYOR Chip conveyor device in the front side of machine removes chips efficiently. (option) |
